Timloc Low-Profile Plain Roof Tile Vent – Multi-Colour Options

Description

Delivery:

IN STOCK. NEXT DAY DELIVERY if ordered before 13:00

Key Features:

• Visible Colour: Red, Brown, Grey, Terractotta
• Free ventilation area: 6,100mm2
• Minimum Pitch: 35°
• Size: Sized to replace 2 x plain tiles (266 x 165mm) to provide a continuous visual appearance along the roof when viewed at all levels
• Top Material: Top – UV stabilised coloured injection moulded Polypropylene.
• Base Material: Black injection moulded Polypropylene
• UV: UV stabilised for continuous exposure to sunlight
• Extraction when used with pipe adaptor: Kitchens, Bathrooms, Cloakrooms, Utility rooms

Description:

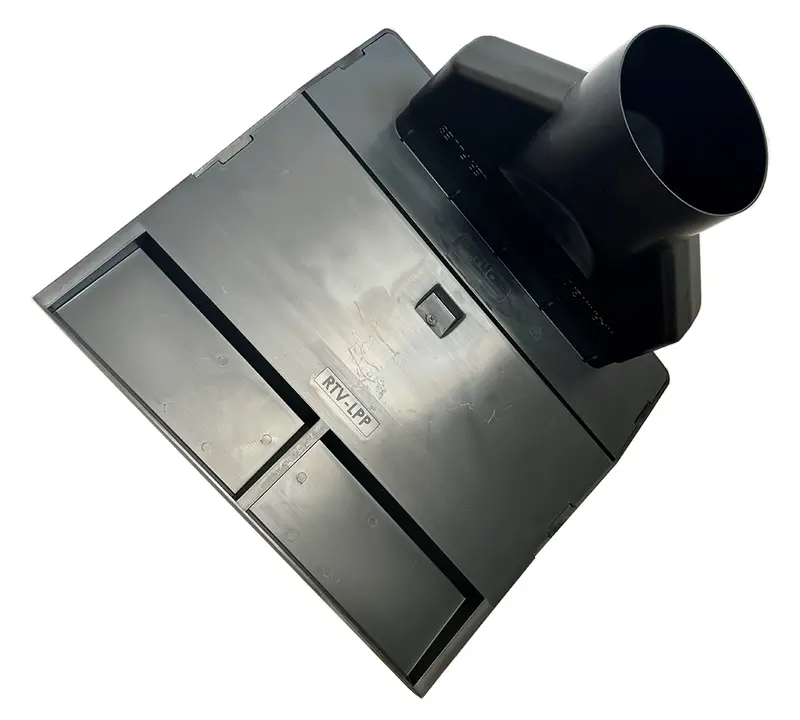

The Timloc Low Profile Plain Tile Vent enables ventilation directly into a roof space or connect to a ducted ventilation system for mechanical extraction.

Suitable for use with all concrete and clay plain tiles to ventilate the roof space or connected to a ducted ventilation system inside the building.

• Suitable for roofs with a minimum pitch of 35°
• Free ventilation area of 6,100mm2
• Sized to replace 2 plain tiles to provide a continuous visual appearance along the roof when viewed at all levels
• Shaped to manage rainwater back down onto the roof and away from the vent opening via the three drainage channels
• Internal grille to keep out large insects, vermin and debris
• UV stabilised for continuous exposure to sunlight
• Lightweight and easy to handle
• Certification: BS EN 490:2011, BS 5250: 2021, BS 5534:2014
• Manufactured to BS EN ISO 9001:2015 and BS EN ISO 14001:2015
• Complies with all relevant sections of the Building Regulations 2010

Downloads & Data Sheets:

 Plain Tile Vent Data Sheet
